一、结构
简介：
系统主要通过Keepalived+MySQL双主来实现MySQL-HA，我们必须保证两台MySQL数据库的数据完全一样，基本设计是两台MySQL互为主从关系，通过Keepalived配置虚拟IP，实现当其中的一台MySQL数据库宕机后，应用能够自动切换到另外一台MySQL数据库，保证系统的高可用。拓扑环境：
OS: Red Hat Enterprise Linux Server release 7.1 (Maipo)
MySQL version: 5.5.59-log MySQL Community Server (GPL)
Keepalived version: keepalived-1.3.5-1.el7.x86_64
MySQL-Vip: 172.28.10.100
MySQL-Master1: 172.28.10.82
MySQL-Master2: 172.28.10.83

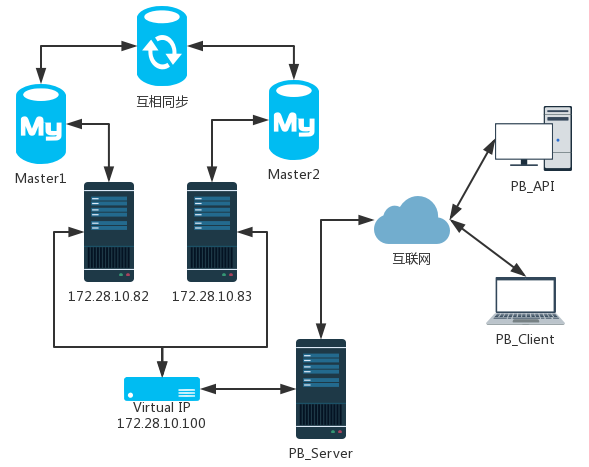

结构图：
二、 MySQL环境部署
修改MySQL配置文件
以下为master1数据库的my.cnf配置文件内容，目录为/etc/my.cnf，配置完成后重启数据库[client] port = 3382 socket = /var/lib/mysql/mysql.sock [mysqld] port = 3382 socket = /var/lib/mysql/mysql.sock skip-external-locking key_buffer_size = 16M max_allowed_packet = 1M table_open_cache = 64 sort_buffer_size = 512K net_buffer_length = 8K read_buffer_size = 256K read_rnd_buffer_size = 512K myisam_sort_buffer_size = 8M log-bin=mysql-bin binlog_format=mixed # master2的server-id改为2 server-id = 1 # 要产生log的数据库 binlog-do-db=pms_db # 不产生log的数据库 binlog-ignore-db=mysql # 要复制的数据库 replicate-do-db=pms_db # 不复制的数据库 replicate-ignore-db=mysql log-bin=mysql-bin innodb_data_home_dir = /var/lib/mysql innodb_data_file_path = ibdata1:10M:autoextend innodb_log_group_home_dir = /var/lib/mysql innodb_buffer_pool_size = 16M innodb_additional_mem_pool_size = 2M innodb_log_file_size = 5M innodb_log_buffer_size = 8M innodb_flush_log_at_trx_commit = 1 innodb_lock_wait_timeout = 50 [mysqldump] quick max_allowed_packet = 16M [mysql] no-auto-rehash [myisamchk] key_buffer_size = 20M sort_buffer_size = 20M read_buffer = 2M write_buffer = 2M [mysqlhotcopy] interactive-timeout将master1设置为master2的主服务器
- 创建用于同步数据的账户及赋予权限、限制登录IP
-- master1上操作 create user 'backup'@'172.28.10.83' identified by 'pms@1082'; grant replication slave on *.* to 'backup'@'172.28.10.83' identified by 'pms@1082'; -- master2上稍后操作 create user 'backup'@'172.28.10.82' identified by 'pms@1083'; grant replication slave on *.* to 'backup'@'172.28.10.82' identified by 'pms@1083';- master1上操作
show master status; -- 执行后显示file和position，显示如下 +------------------+----------+--------------+------------------+ | File | Position | Binlog_Do_DB | Binlog_Ignore_DB | +------------------+----------+--------------+------------------+ | mysql-bin.000010 | 107 | pms_db | mysql | +------------------+----------+--------------+------------------+- master2上操作
-- master_log_file、master_log_pos根据上面master1的信息填写 change master to master_host='172.28.10.82', master_user='backup', master_password='pms@1082', master_log_file='mysql-bin.000010', master_log_pos=107, master_port=3382; start slave; show slave status \G -- 打印的信息中数值为下面的值即为配置成功 Slave_IO_Running: Yes Slave_SQL_Running: Yes- 创建用于同步数据的账户及赋予权限、限制登录IP
将master2设置为master2的主服务器
按照上一部分重复即可
三、 Keepalived的安装配置
安装
# 两台机器分别执行，可选rpm、源码安装，依赖问题根据实际情况解决 yum install keepalived配置
- master1配置，==router_id、priority、real_server==与master2不同，==interface==根据实际情况修改，配置文件目录为/etc/keepalived/keepalived.conf
! Configuration File for keepalived global_defs { router_id MYSQL-82 vrrp_skip_check_adv_addr vrrp_garp_interval 0 vrrp_gna_interval 0 } vrrp_instance VI_1 { state BACKUP interface eth0 virtual_router_id 51 priority 100 nopreempt advert_int 1 authentication { auth_type PASS auth_pass 1111 } virtual_ipaddress { 172.28.10.100 } } virtual_server 172.28.10.100 3382 { delay_loop 2 lb_algo rr lb_kind DR persistence_timeout 50 protocol TCP real_server 172.28.10.82 3382 { weight 1 notify_down /etc/keepalived/mysql.sh TCP_CHECK { connect_timeout 3 delay_before_retry 3 connect_port 3382 } } }- master2配置，router_id、priority、real_server与master1不同，interface根据实际情况修改
! Configuration File for keepalived global_defs { router_id MYSQL-83 vrrp_skip_check_adv_addr vrrp_garp_interval 0 vrrp_gna_interval 0 } vrrp_instance VI_1 { state BACKUP interface eth0 virtual_router_id 51 priority 50 advert_int 1 authentication { auth_type PASS auth_pass 1111 } virtual_ipaddress { 172.28.10.100 } } virtual_server 172.28.10.100 3382 { delay_loop 2 lb_algo rr lb_kind DR persistence_timeout 50 protocol TCP real_server 172.28.10.83 3382 { weight 1 notify_down /etc/keepalived/mysql.sh TCP_CHECK { connect_timeout 3 delay_before_retry 3 connect_port 3382 } } }- mysql.sh脚本，需chmod添加执行权限
#!/bin/bash pkill keepalived /sbin/ifdown eth0 && /sbin/ifup eth0- 启动及检查
systemctl start keepalived systemctl status keepalived systemctl stop keepalived # 查看网络信息 ip a # 查询以下信息证明 Virtual IP已经绑定成功 eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP qlen 1000 link/ether 00:50:56:b1:60:58 brd ff:ff:ff:ff:ff:ff inet 172.28.10.83/24 brd 172.28.10.255 scope global eth0 valid_lft forever preferred_lft forever inet 172.28.10.100/32 scope global eth0 valid_lft forever preferred_lft forever inet6 fe80::250:56ff:feb1:6058/64 scope link valid_lft forever preferred_lft forever
